1001CABLE DRUM 400-12 - Standard Lift

cable drum 400 12

MAX DOOR HEIGHT: 3680mm
MAX DOOR WEIGHT: 500kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 86mm

Dimensions: 124 x 85.5 mm
Unit: Pair (2)
Weight: 1.0kg / Pair

2 safety wraps for the cable

Cross Ref: FF-NL-12    TF - M102 3965

1002CABLE DRUM 5250-18 - Standard Lift

cable drum 5250 18

MAX DOOR HEIGHT: 5570mm
MAX DOOR WEIGHT: 500kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 111mm

Dimensions: 158 x 95 mm
Unit: Pair (2)
Weight: 1.5kg / Pair

2 safety wraps for the cable

Cross Ref: FF-NL-18    TF - M134 5500

1003CABLE DRUM 800-32 - Standard Lift

cable drum 800 32

MAX DOOR HEIGHT: 10175mm
MAX DOOR WEIGHT: 700kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 6mm
BEARING PLATE: 152mm

Dimensions: 226 x 128 mm
Unit: Pair (2)
Weight: 5.2kg / Pair

2 safety wraps for the cable

Cross Ref: FF-NL-32    TF - M203 9750

1011CABLE DRUM 5250-54 - High Lift

cable drum 5250 54

MAX HIGH LIFT: 1370mm
MAX DOOR HEIGHT: 4800mm
MAX DOOR WEIGHT: 500kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 111mm

Dimension: 188 x 99 mm
Unit: Pair (2)
Weight: 2.0kg / Pair

2 safety wraps for the cable

Cross Ref: FF-HL-54    TF - M134 1375 HL

1013CABLE DRUM 5750-120 - High Lift

cable drum 5750 120

MAX HIGH LIFT: 3050mm
MAX DOOR HEIGHT: 5050mm
MAX DOOR WEIGHT: High Lift<2500mm = 500kg
MAX DOOR WEIGHT: High Lift>2500mm = 450kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 127mm

Dimensions: 238 x 101 mm
Unit: Pair (2)
Weight: 2.8kg / Pair

2 safety wraps for the cable

Cross Ref: FF-HL-120    TF - M146 3050 HL

1015CABLE DRUM 6375-164 - High Lift

cable drum 6375 164

MAX HIGH LIFT: 4100mm
MAX DOOR HEIGHT: 6000mm
MAX DOOR WEIGHT: HL < 2500mm = 600kg
MAX DOOR WEIGHT: HL > 2500mm = 575kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 6mm
BEARING PLATE:  152mm

Dimensions: 280 x 152 mm
Unit: Pair (2)
Weight: 6.0kg / Pair

2 safety wraps for the cable

Cross Ref: FF-HL-164    TF - M162 4165 HL

1020CABLE DRUM 850-11 - Full Vertical Lift

cable drum 850 11

MAX DOOR HEIGHT: 3300mm
MAX DOOR WEIGHT: 500kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 127mm

Dimensions: 218 x 80 mm
Unit: Pair (2)
Weight: 1.8kg / Pair

2 safety wraps for the cable

Cross Ref: FF-VL-11    TF - M216 3350 VL

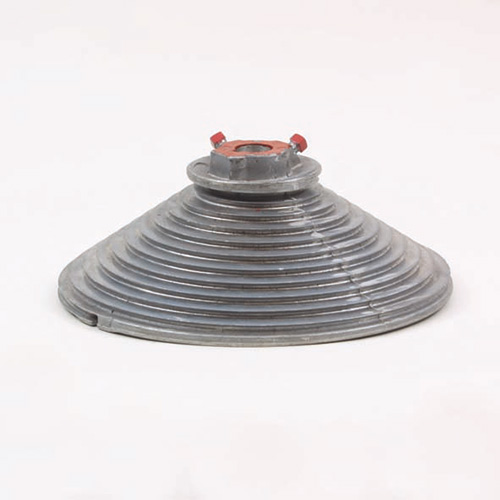

1021CABLE DRUM 1100-18 - Full Vertical Lift

cable drum 1100 18

MAX DOOR HEIGHT: 6000mm
MAX DOOR WEIGHT: 600kg
DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIA.: 5mm
BEARING PLATE: 152mm

Dimensions: 284 x 102 mm
Unit: Pair (2)
Weight: 3.9kg / Pair

2 safety wraps for the cable

Cross Ref: FF-VL-18    TF - M280 5500 VL

1022CABLE DRUM 1350-28 - Full Vertical Lift

cable drum 1350 28 full vertical lift

MAX DOOR HEIGHT: 8500mm
MAX DOOR WEIGHT: VL<7000mm = 825kg
MAX DOOR WEIGHT: VL>7000mm = 750kg

DIAMETER SHAFT: 25.4mm (1")
MAX CABLE DIAMETER: 6mm
BEARING PLATE: 190mm

Dimensions: 348 x 173 mm
Unit: Pair (2)
Weight: 8.6kg / Pair

Max. opening with 2 safety wraps is 7000 mm

Cross Ref: FF-VL-28    TF - M340 8500 VL

1023CABLE DRUM 1350-28 (1¼") - Full Vertical Lift

cable drum 1350 28 1 14inch

MAX DOOR HEIGHT: 8500mm
MAX DOOR WEIGHT: VL<7000mm = 825kg
MAX DOOR WEIGHT: VL>7000mm = 750kg

DIAMETER SHAFT: 31.75mm (1¼")
MAX CABLE DIAMETER: 6mm
BEARING PLATE: 190mm


Dimensions: 348 x 173 mm
Unit: Pair (2)
Weight: 8.6kg / Pair

Max. opening with 2 safety wraps is 7000 mm

Cross Ref: FF-VL-28-5/4    TF - M340 8500 VL
