2114TRACK CONNECTING PLATE

section track clips and plates

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2114B: 35mm x 120mm offset - 0.12kg
2114C: 13mm x 120mm offset - 0.12kg

For use with 2060 Vertical Angle and 2260 Vertical Track

Dimensions: 120 x 65 x 25 mm
Unit: Piece (1)
Weight: Individual see above

2116BTRACK CONNECTING PLATE

section track clips and plates

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2116B: 35mm x 200mm offset

For use with 2060 Vertical Angle and 2260 Vertical Track

Dimensions: 200 x 60 x 25 mm
Unit: Piece (1)
Weight: 0.19kg

2458 - 2473TRACK CONNECTION PROFILES - Bolted Track System

Connection Profile

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2458: Connection Profile - 140mm - 0.19kg
2459: Connection Profile - 170mm - 0.23kg
2460: Connection Profile - 210mm - 0.27kg
2461: Connection Profile - 240mm - 0.33kg

2462: Connection Profile - 270mm - 0.37kg
2463: Connection Profile - 300mm - 0.41kg
2464: Connection Profile - 330mm - 0.45kg
2465: Connection Profile - 360mm - 0.49kg
2466: Connection Profile - 390mm - 0.53kg
2467: Connection Profile - 420mm - 0.57kg
2468: Connection Profile - 450mm - 0.61kg
2469: Connection Profile - 480mm - 0.66kg
2470: Connection Profile - 510mm - 0.70kg
2471: Connection Profile - 540mm - 0.74kg
2472: Connection Profile - 570mm - 0.78kg
2473: Connection Profile - 600mm - 0.82kg

To be used with 2400 - 2411 Vertical Track & 2415 - 2425 Vertical Angle

Dimensions: 53 x 20 x (x) mm
Unit: Piece (1)
Weight: Individual see above

2474FILLER PLATE UNIVERSAL - Bolted Track System

Filler Plate Universal

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2474: Filler Plate Universal

Dimensions: 180 x 48 x 16 mm
Unit: Piece (1)
Weight: 0.13kg

2475TRACK PLATE 90x60x2 (40mm) - Bolted Track System

Track Plate 90x60x2

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2475: Track Plate 90x60x2 (40mm)

Dimensions: 90 x 69 x 4 mm
Unit: Piece (1)
Weight: 0.08kg

2476ALUMINIUM TRACK CONNECTOR UNIVERSAL - Bolted Track System

Alu Track Connector Universal

MATERIAL: Aluminium
THICKNESS: 4mm

2476: Aluminium Track Connector Universal

Dimensions: 60 x 55 x 30 mm
Unit: Piece (1)
Weight: 0.05kg

2477CONNECTION FOR 'C' PLATE - Bolted Track System

Contra C Plate

MATERIAL: Galvanised Steel
THICKNESS: 3mm

2477: Connection for 'C' Plate

Dimensions: 60 x 50 x 17 mm
Unit: Piece (1)
Weight: 0.10kg

2478CONNECTION PLATE FOR PITCHED TRACKS - Bolted Track System

Connection Plate for FTR

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2478: Connection Plate for Pitched Tracks

Dimensions: 140 x 68 x 8 mm
Unit: Piece (1)
Weight: 0.38kg

2479TRACK PLATE FOR VERTICAL ANGLE & 'C' CHANNEL - Bolted Track System

Track Plate VA CP

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2479: Track Plate for Vertical Angle and 'C' Channel

To suit 2415 - 2425 & 2437 - 2448

Dimensions: 110 x 100 mm
Unit: Piece (1)
Weight: 0.19kg

2480TRACK PLATE FOR HIGH LIFT (40mm) - Bolted Track System

Track Plate HL 40mm

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2480: Track Plate for High Lift Doors (40mm)

Dimensions: 148 x 90 x 7 mm
Unit: Piece (1)
Weight: 0.21kg

2481TRACK PLATE FOR HIGH LIFT (80mm) - Bolted Track System

Track Plate HL 80mm

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2481: Track Plate for High Lift Doors (80mm)

Dimensions: 187 x 90 x 7 mm
Unit: Piece (1)
Weight: 0.26kg

2482CONNECTION PLATE HIGH LIFT - Bolted Track System

HL Connection Plate

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2482: Connection Plate for High Lift Arrangement

Dimensions: 150 x 105 mm
Unit: Piece (1)
Weight: 0.15kg

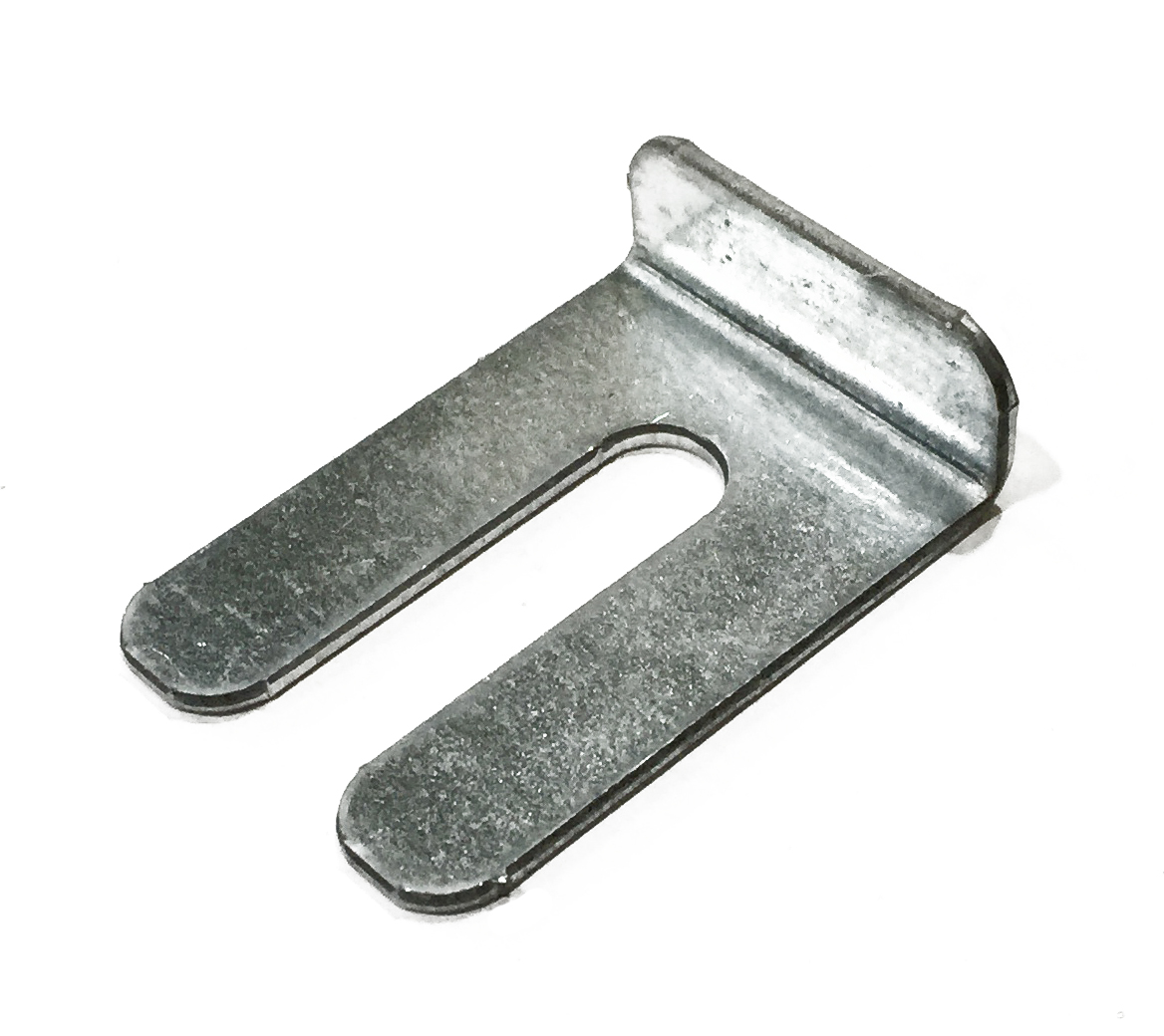

2483SHIM - Bolted Track System

Shim

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2483: Shim (Spacer)

Dimensions: 51 x 36 x 14 mm
Unit: Piece (1)
Weight: 0.03kg

2484CORNER BRACKET 60 x 60 - Bolted Track System

Corner Bracket 60 x 60

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2484: Corner Bracket 60 x 60

Dimensions: 60 x 60 x 50 mm
Unit: Piece (1)
Weight: 0.08kg

2485TRACK CONNECTION PLATE (40MM) - Bolted Track System

Track Connection Plate 40mm

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2485: Track Connection Plate (40mm)

Dimensions: 160 x 105 x 7 mm
Unit: Piece (1)
Weight: 0.22kg

2486TRACK CONNECTION PLATE (80MM) - Bolted Track System

Track Connection Plate 80mm

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2486: Track Connection Plate (80mm)

Dimensions: 160 x 155 x 7mm
Unit: Piece (1)
Weight: 0.36kg

2489TRACK PLATE 90x128x2 (80MM) - Bolted Track System

Track Plate 90x128x2 80mm

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2489: Track Plate 90 x 128 x 2 (80mm)

Dimensions: 128 x 90 x 7 mm
Unit: Piece (1)
Weight: 0.13kg
