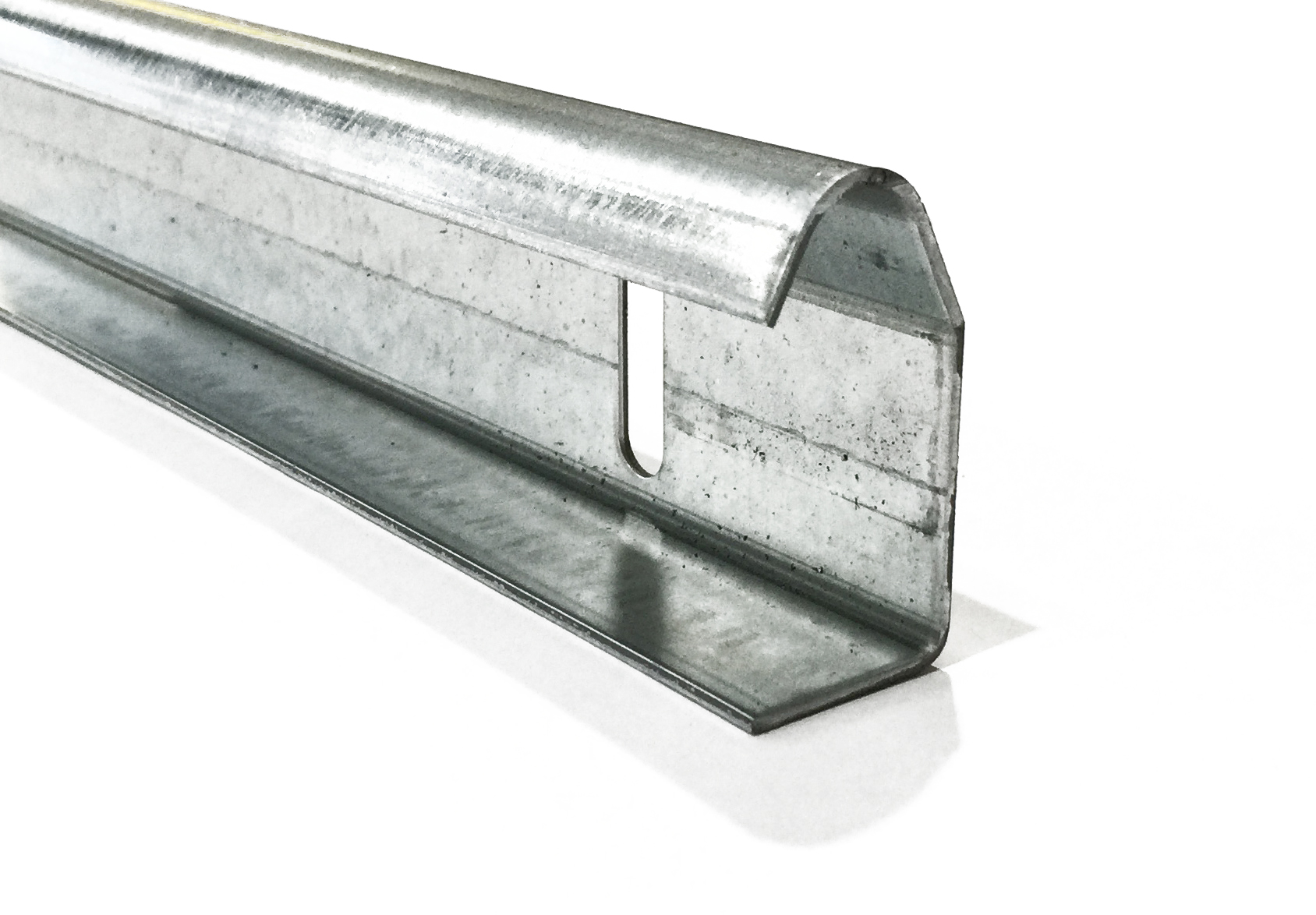

2400 - 2411VERTICAL TRACK - Bolted Track System

Vertical Track

MATERIAL: Galvanised Steel
THICKNESS: 2mm

2400: 1490mm - 2.00kg
2401: 1990mm - 2.70kg
2402: 2490mm - 3.40kg
2403: 2990mm
 - 4.10kg
2404: 3490mm - 4.80kg
2405: 3990mm - 5.50kg
2406: 4490mm - 6.10kg
2407: 4990mm
 - 6.80kg
2408: 5490mm - 7.50kg
2409: 5990mm - 8.20kg
2410: 6490mm - 8.80kg
2411: 6990mm
 - 9.50kg


Galvanised to suit Vertical Track Angle 2415 - 2425

Dimensions: 54 x 27 x (x) mm
Unit: Piece (1)
Weight: See above (1.34kg/Lin. metre approx.)

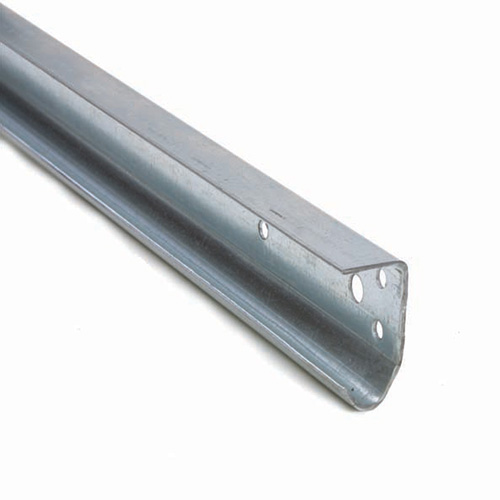

2260VERTICAL TRACK (2")

2260

MATERIAL: Galvanised Steel
THICKNESS: 2mm


2260/6: 2" x 6000mm
 - 9.00kg


Galvanised to suit Vertical Track Angle 2060

Dimensions: 54 x 27 x (x) mm
Unit: Piece (1)
Weight: Weight: See above (1.50kg/Lin Metre approx.)

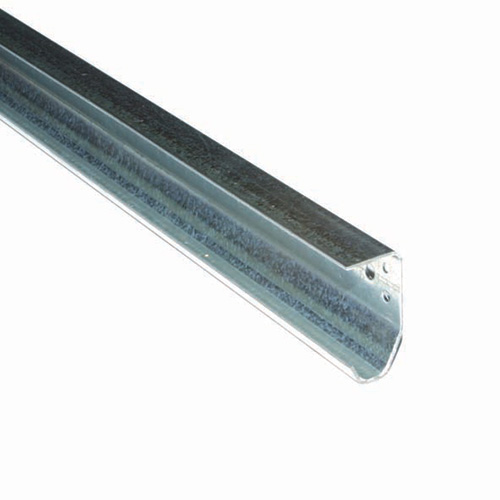

2252VERTICAL TRACK (3")

2250

MATERIAL: Galvanised Steel
THICKNESS: 3mm

2252: 2.5 x 5180mm

Galvanised to suit Vertical Track Angle 2061

Dimensions: 81 x 35 x 5180 mm
Unit: Pair (2)
Weight: 31.80kg / pair
