'W' Type - 40mm
Specification
| DIMENSIONS: 610 x 40 |
WEIGHT: 5.40kg/lin.m (Polyester Stucco Steel) WEIGHT: 6.10kg/lin.m (Plastisol Leathergrain) |
STOCK LENGTHS: 4200mm and 9200mm |
Industrial type panels, traditional tongue and groove joint Characteristics
- Insulation: High density, self-extinguishing CFC-free Polyurethane foam
- Metal layers: Pre-painted galvanised steel
- Coating: 25 um Polyester or 200 um Plastisol
- Inner and outer faces Stucco embossed (smooth Leathergrain for Plastisol)
- A PVC sealing tape is applied during production to the panel nose
- Female side incorporates a factory applied low density compressible foam seal, for air and water tightness
(Both Class 3 as per EN 13241-1) - Both sides protected with adhesive polythene film (to be removed before installation)

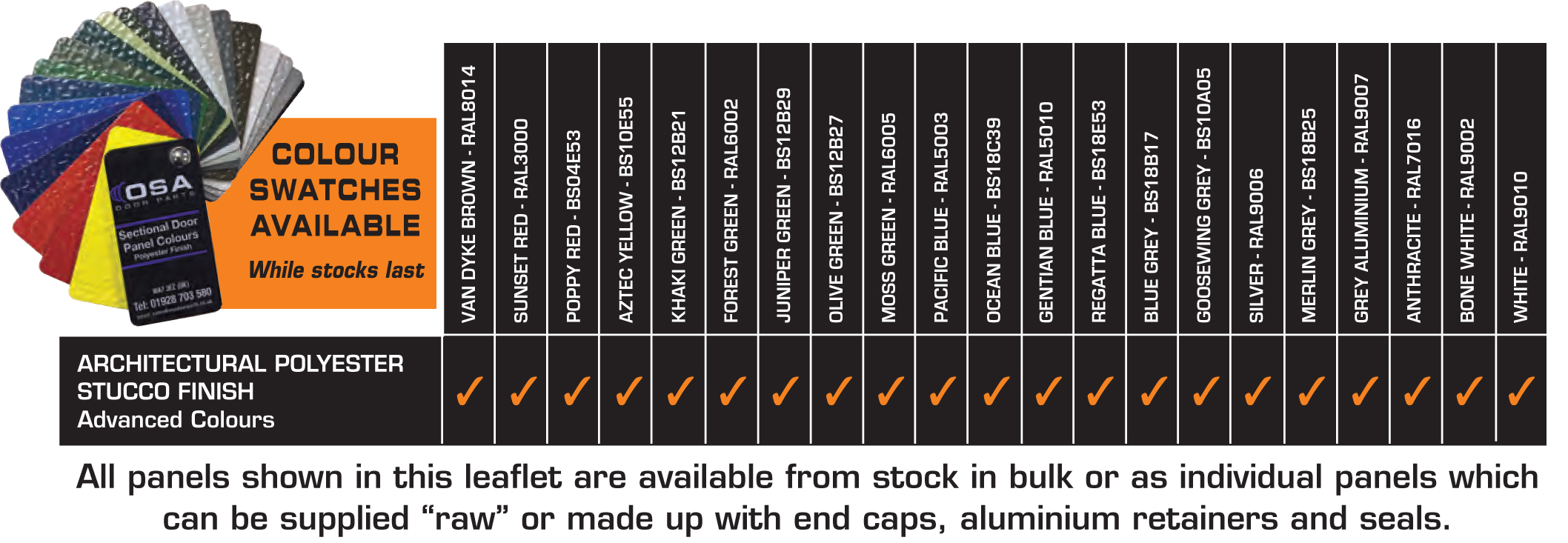

Colours & Finishes
Due to the printing process the panel colours may not be exact and therefore should not be relied on.
